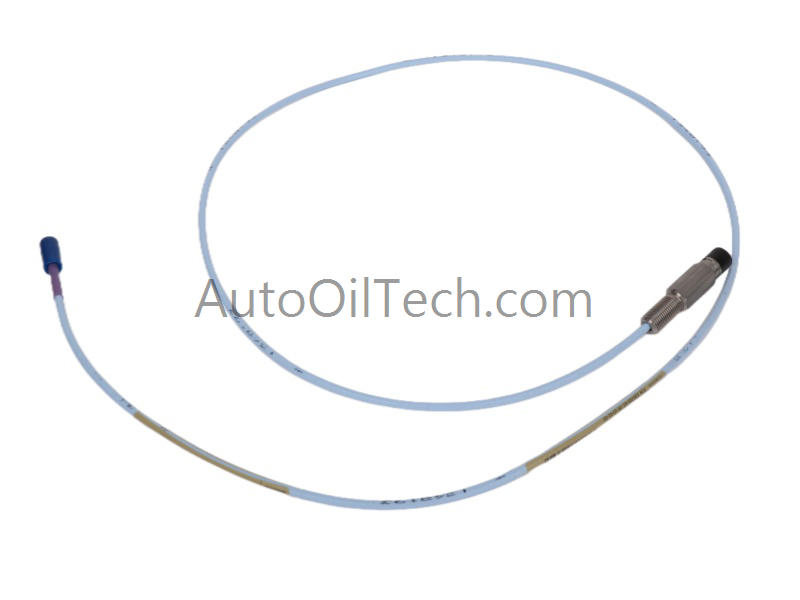

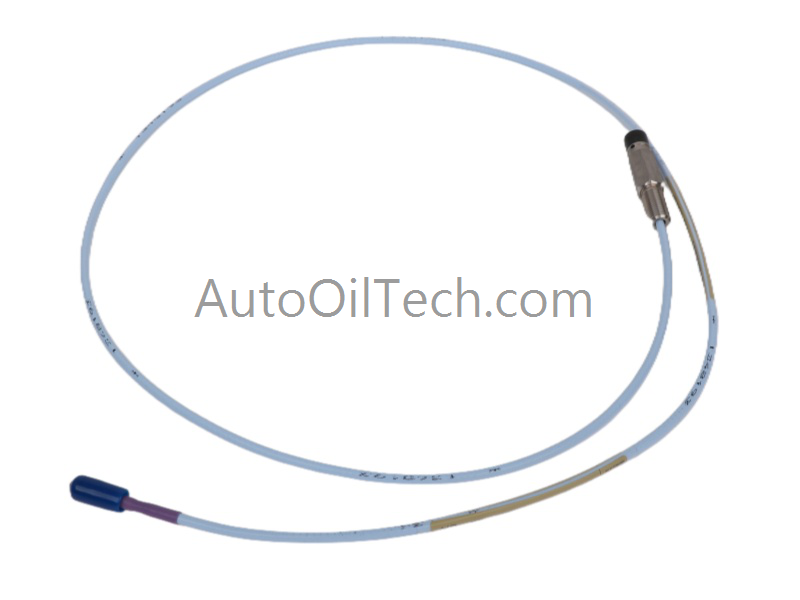

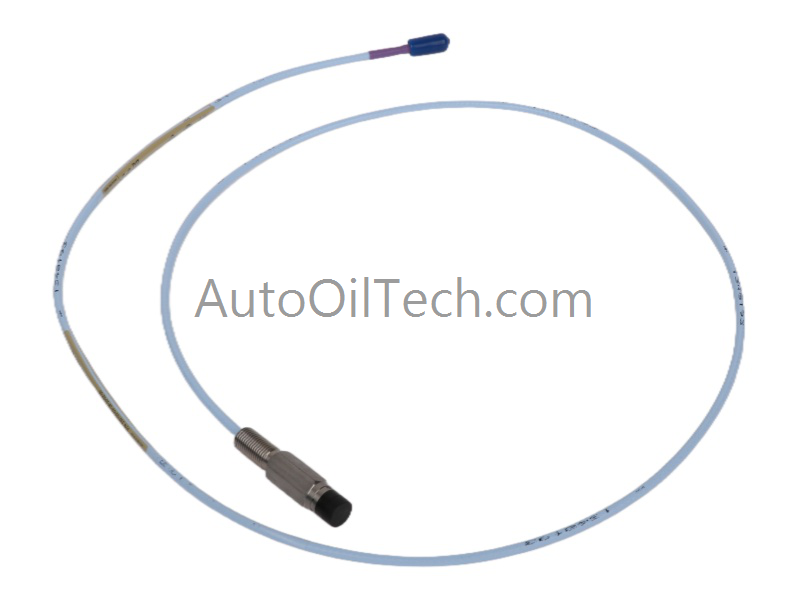

The Bently Nevada 330705-02-18-10-02-05 Reverse Mount Probe is part of the 3300 XL 11 mm Proximity Transducer System. It delivers precise non-contact vibration and displacement measurements in fluid-film bearing machinery. With its larger 11 mm probe tip, it provides a longer linear range compared to conventional 8 mm probes, ensuring accurate diagnostics in critical applications.
Technical Specifications
Parameter
Value
Model Number
330705-02-18-10-02-05
Module Type
3300 XL 11 mm Reverse Mount Probe
Manufacturer
Bently Nevada
Condition
Brand New
Dimensions
20.5 × 22.4 × 3.3 cm
Weight
0.55 kg
Probe Tip Size
11 mm
Output Sensitivity
3.94 V/mm (100 mV/mil)
Thread Options
3/8-24 or M10 × 1 (reverse mount)
Cable Options
1 m, 5 m, or 9 m (triaxial FEP-insulated)
Construction
AISI 304 stainless steel case
Connector
Gold-plated ClickLoc™
Bonding Technology
TipLoc™ probe bonding
Cable Strength
CableLoc™ system, 330 N (75 lb) pull strength
Operating Temperature
-51°C to +177°C
Sealing Components
PPS probe tip, Viton O-ring
Range of Product
3300 XL Proximity Transducer System
HS Code
8537101190
Origin
USA
MOQ
1
Functional Description
The 330705-02-18-10-02-05 probe ensures reliable monitoring with its 3.94 V/mm output sensitivity. Gold-plated ClickLoc™ connectors prevent loosening during operation, while TipLoc™ technology secures the probe tip to the body. The CableLoc™ system provides high pull strength, ensuring robust cable attachment. Its stainless steel case and FEP-insulated cable enhance durability in harsh environments.
Applications and Compatibility
This reverse mount probe is ideal for turbines, compressors, and other fluid-film bearing machinery requiring extended linear range measurements. It integrates seamlessly with the 3300 XL Proximity Transducer System, supporting predictive maintenance and machinery protection programs.
